Versatool 35cc Power Head

versatool - 35cc powerhead

The UMC435 Power Head draws premium performance from Honda's famous 35cc 4-Stroke Engine – the same engine that powers Honda's commercial range of brush cutters. Suitable for residential users and commercial contractors alike, the UMC435 will deliver all the power you could ask for. It delivers start 'first time every time' reliability and superior performance.

As the world's lightest OHC engine, the Honda Mini 4-stroke engine requires no fuel/oil mixing, and runs at approximately half the operating cost of comparable 2-stroke engines.

A full 360° 'any-side-up' operation means you can use and store the UMC435 in any position, and take advantage of the exclusive rotary-slinger lubrication system. The carburetor is equipped with an accelerator pump for fast, easy acceleration, and an efficient port configuration and large diameter valves maximise power output.



YOUR powerhead IN DETAIL

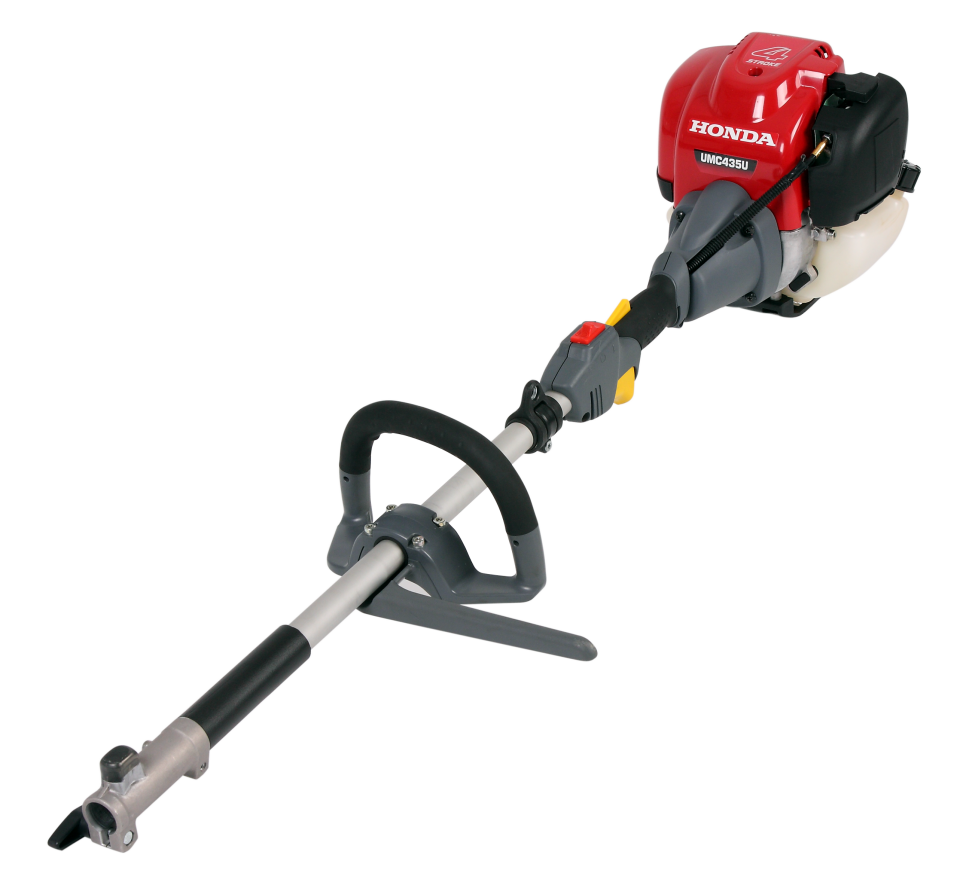

UMC435 Power Head
Product Code UMC435ULAUT
Type 4-stroke, overhead cam, single-cylinder, horizontal shaft
Bore & Stroke 39 x 30mm (1.5 x 1.2 in)
Displacement 35.8cm³ (2.2 cu in)
Compression Ratio 8.0:1
Net Power 1.0kW (1.3HP) at 7,000rpm
Max Net Torque 1.6 Nm (1.2 lbs ft) at 5,500rpm
Ignition System Transistorised magneto ignition
Starting System Recoil Starter
Cooling System Forced-air
PTO Shaft Rotation Counter-clockwise (from P.T.O. side)
Fuel Consumption at Rated Power 0.71 L/h at 7,000rpm
Lubrication System Oil Mist
Recommended Fuel Unleaded
Other Specs Infinite Operating Angles
Capacity and Dimensions
Oil Capacity 0.1l
Fuel Tank Capacity 0.65l
Dimensions 198mm x 234mm x 240mm
Dry Weight 6kg

the honda advantage

versattach™ system

no fuel mixing

easy start

360° operation

4 year domestic warranty

4 year domestic warranty

Honda's leading range of power equipment comes with leading warranty periods. Our range of power equipment products carrying up to a 4 year domestic warranty*.

With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.

Find more details on Honda's warranties and the warranty schedule on our warranty page.
