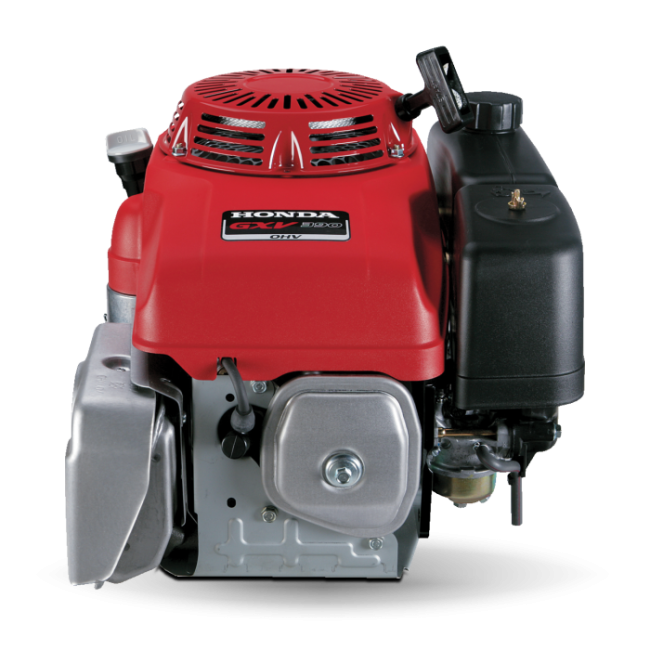

GXV390
The GXV390 engine is suitable for a wide range of heavy-duty applications such as ride-on mowers, sweepers, construction equipment and other industrial applications.
FUEL EFFICIENCY AND HIGH OUTPUT
Built for hard work it boasts a large capacity, multi-chamber exhaust system, forged steel crankshaft and rigid crankcase, helical cut gears and a sophisticated air intake system.
The materials are used to provide years of service with cast iron cylinder sleeve, high quality materials and excellent fit and finish.
EASY TO USE AND MAINTAIN
The large fuel tank, large automotive type fuel cap and easily accessible spark plug make it easy to use and maintain.
Specifications
| Model | GXV390 |
| Type | 4-stroke, overhead valve, single-cylinder, Vertical Shaft |
| Bore & Stroke | 88 x 64mm |
| Displacement | 389 cc |
| Compression Ratio | 7.7:1 |
| Net Power | 7.6kW (10.2HP) at 3,600rpm |
| Continuous Rated Power | 5.2kW (7.0HP) at 3000rpm |
| Max Net Torque | 24.2 Nm at 2,500rpm |
| Ignition System | Transistorised magneto ignition |
| Starting System | Recoil (Electric Start Optional) |
| Cooling System | Forced-Air |
| PTO Shaft Rotation | Counter-clockwise (from P.T.O. side) |
| Fuel Consumption at Rated Power | 2.5 L/h at 3,000rpm |
| Recommended Fuel | Unleaded |
| Recommended Oil | 10W/30 API SG |
| Lubrication System | Pressure and splash |
| Oil Capacity | 1.1 litres |
| Fuel Tank Capacity (Litres) | 2.1 litres |
| Dry Weight | 32.95 kg approx. |
| Length | 430 mm |
| Width | 385 mm |
| Height | 410 mm |
