Vertical Shaft Engines

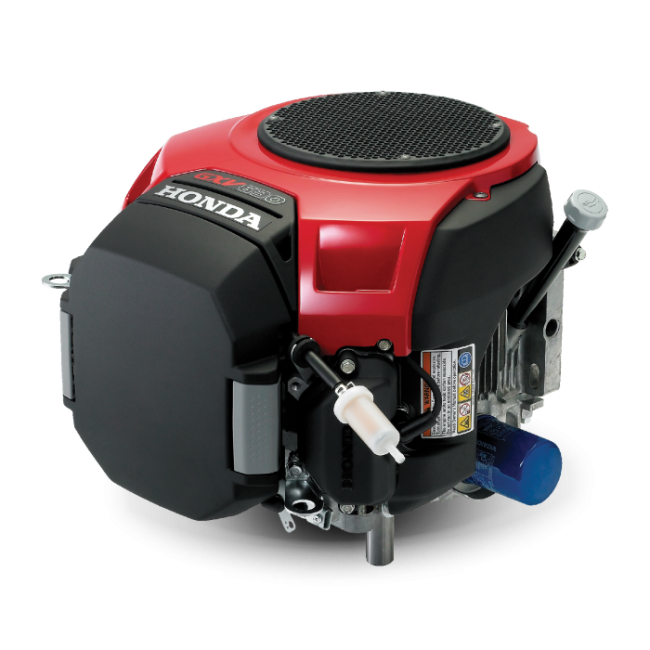

GXV630

The Honda GXV630 with its powerful twin engines is used in a variety of applications from lawncare equipment to small vehicles and tractors.

FUEL EFFICIENT OPERATION

The OHV design enhances combustion efficiency and ensures an optimal power transfer.

Honda’s Variable Timing Digital CDI ignition allows optimal ignition timing based on engine speed. The result is excellent starting, high power output, reduced fuel consumption, and outstanding emissions performance. An engine rev limiter is also incorporated to prevent over-revving.

PROVEN RELIABILITY

The lubrication system uses a high capacity pump with discrete chambers. This facilitates consistent oil delivery to the flywheel, PTO, and connecting-rod bearings. The result: reduced friction, extended engine life and less mechanical engine noise.

Enquire
Specifications
ModelGXV630
Product CodeGXV630RHQAF
TypeAir-cooled 4-stroke OHV petrol engine, 90° V-twin design, vertical shaft
Bore & Stroke2 / 78 x 72mm
Displacement688 cc
Compression Ratio9.3:1
Net Power

15.5 kW (20.8 HP) / 3 600rpm

Continuous Rated Power

10.5 kW (14.1 HP) / 3 000rpm

Max Net Torque48.3 Nm / 4.93 kgfm / 2 500rpm
Ignition SystemDigital CDI with variable ignition timing
Starting SystemElectric Start
Cooling SystemForced-Air
Fuel Consumption at Rated Power5.0 L/h at 3,600rpm
Recommended FuelUnleaded
Lubrication SystemFull-pressure
Oil Capacity2.2 litres
Dry Weight46.5 kg approx.
Length449 mm
Width420 mm
Height475 mm
GXV630
