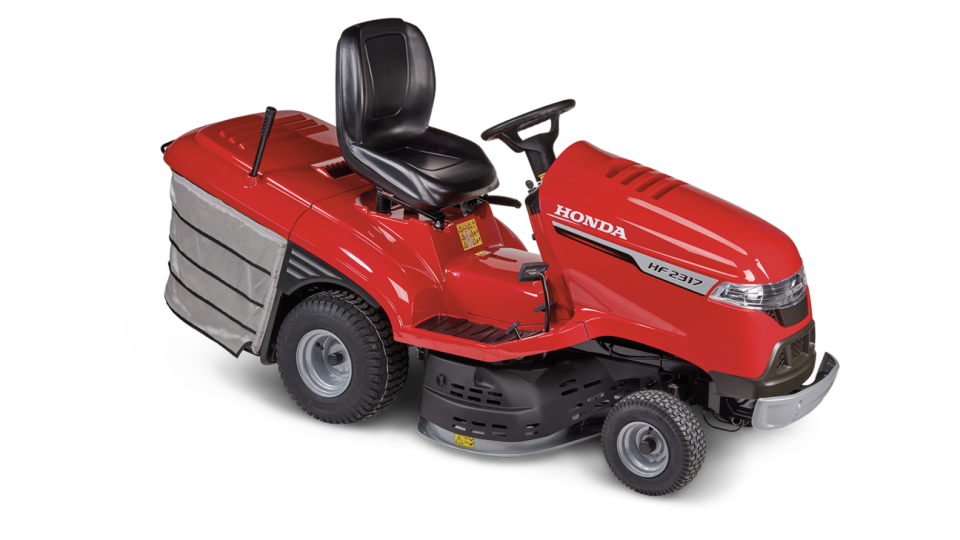

HF2317 Ride On Mower

HF2317 ride on mower

Equipped with a new Euro 5 compliant engine, this product is one of the latest generation Honda lawn tractor models. Several new features have also been developed for the new lawn tractor range with enhanced convenience and comfort in mind.

Powered by Honda’s smooth and powerful GCV530 OHV V-twin motor. This engine offers great fuel consumption with low emissions, low vibration, and long operational life span.  Electric key start ignition provides a smooth, vibration free, start and a lengthy service life.

A foot operated Hydrostatic transmission means both of the operators hands are on the steering wheel rather than one on a hand controller allowing for more control and more safety for the driver.

The HF2317 has an integrated electromagnetic blade clutch, where the engagement and braking are combined in one system. This will ensure a greater braking performance for added safety, as well as avoiding extra wear on specific parts of the machine.

Product Overview:

  • Cutter Deck Size: 92cm
  • Garden Size: Very Large. Suitable for lawns up to 5,000m² (1.25 acres)
  • Transmission: Variable Hydrostatic Drive - This lawnmower's speed is adjusted by pedal control
  • Mulching: Optional - Mulching is only available on this model if you purchase an additional mulching kit from a Honda Dealer
  • Grass Bag Capacity: 280L
  • Grass Bag Dumping: Manual - Dispose of grass clippings by lifting a lever




YOUR Ride on mower IN DETAIL

Blade Brake Clutch Electromagnetic
Optiflow Yes
Catcher Bag Dumping Manual
Cutting Positions 7
Noise Level (dB (A)) 100
Mulching Optional
Rear Deflector Optional
Tow Hitch Optional
Length (mm) 2440
Width (mm) 970
Height (mm) 1230
Dry Weight (kg) 219
Cutter Deck Size (cm) 92
Number of Blades 2
Synchro or Asynchro Asynchro
Height Adjustment (mm) 29-80
Catcher Capacity (Litres) 280
Lawn Size Suitable for lawns up to 5,000m² (1.25 acres)
Engine 4-stroke OHV V-twin
Displacement (cc) 530
Engine Model GCV530
Rated Power (kW/rpm) 9.4/2800
Fuel Tank Capacity 5.4l
Engine Oil Capacity 1.3l
Transmission Variable: Hydrostatic
Driving Speed (km/h) Progressive 0 to 8.2

the honda advantage

mowsafe™ technology

power & torque

Optiflow® unique airflow system

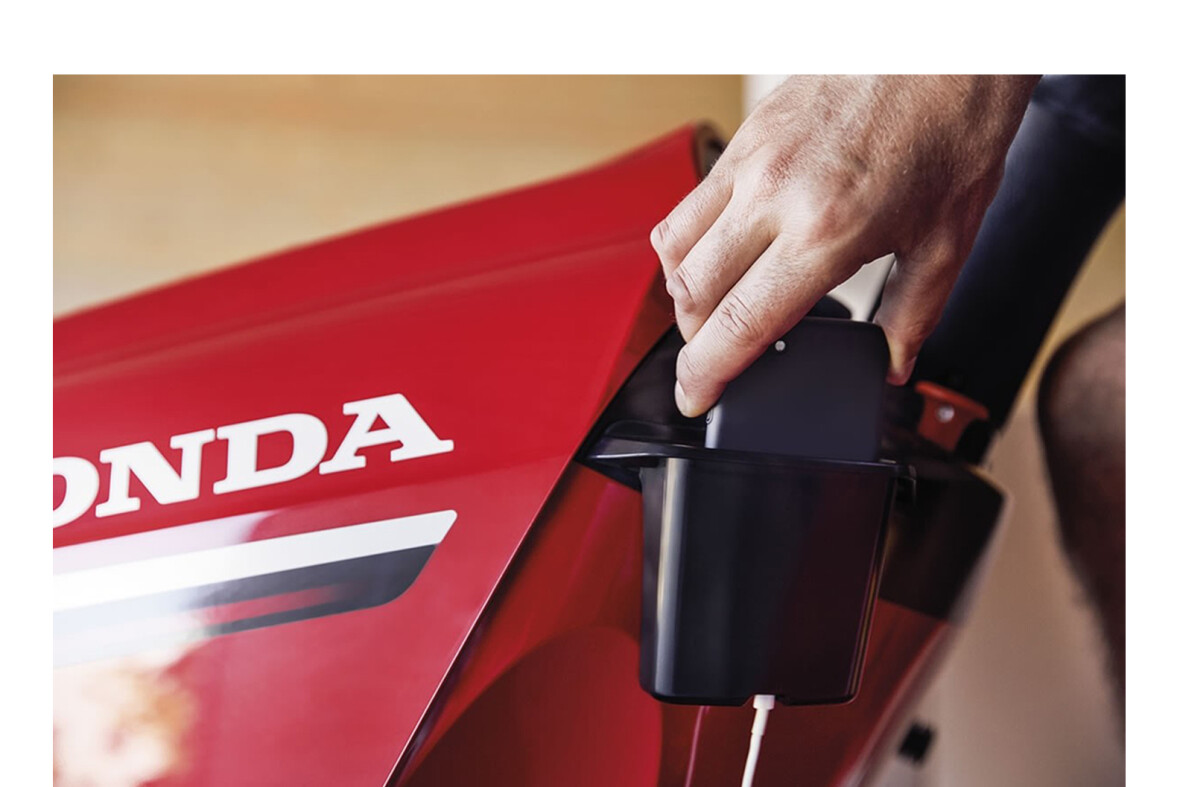

USB charging

2 year domestic warranty

Honda's leading range of power equipment comes with leading warranty periods. With our range of ride on mowers carrying up to a 2 year domestic warranty*.

With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.

Find more details on Honda's warranties and the warranty schedule on our warranty page.
