reliable, fuel efficient performance

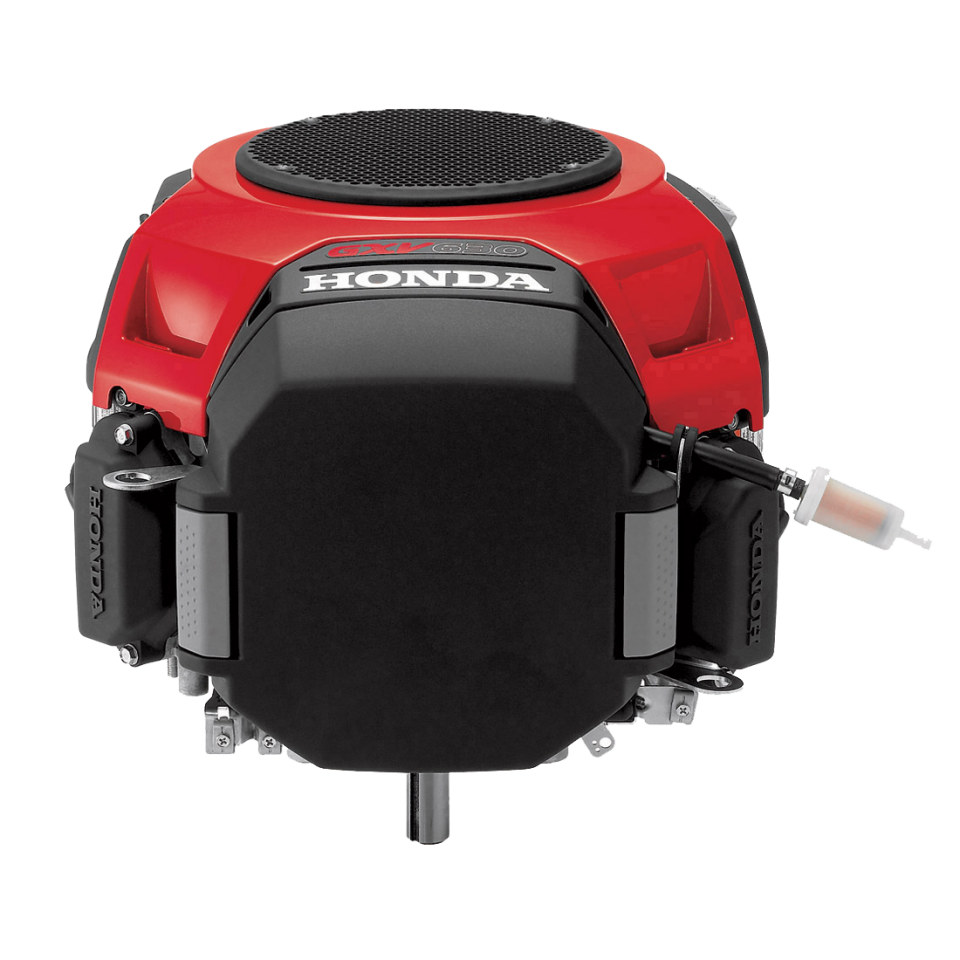

The Honda GXV630 with its powerful twin engines is used in a variety of applications from lawncare equipment to small vehicles and tractors.
FUEL EFFICIENT OPERATION
With great fuel economy carburettor similar to fuel injection it boast exceptional power whilst running economically.
Honda’s Variable Timing Digital CDI ignition allows optimal ignition timing based on engine speed. The result is excellent starting, high power output, reduced fuel consumption, and outstanding emissions performance. An engine rev limiter is also incorporated to prevent over-revving.
YOUR ENGINE IN DETAIL
|Type||Air-cooled 4-stroke OHV petrol engine, 90° V-twin design, vertical shaft|
|Bore & Stroke||2 / 78 x 72mm|
|Net Power||15.5 kW (20.8 HP) / 3 600rpm|
|Continuous Rated Power||10.5 kW (14.1 HP) / 3 000rpm|
|Max Net Torque||48.3 Nm / 4.93 kgfm / 2 500rpm|
|Ignition System||Digital CDI with variable ignition timing|
|Starting System||Electric Start|
|Fuel Consumption at Rated Power||5.0 L/h at 3,600rpm
|Dimensions||449 x 420 x 475mm|
the honda advantage
3 year warranty
Honda's leading range of power equipment comes with leading warranty periods. Our range of GXV engines carrying up to a 3 year warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
Find more details on Honda's warranties and the warranty schedule on our warranty page.
Ready to take the next step towards your Honda engine? With our nationwide network of dealers, from the far north to the deep south and everywhere in between. You can purchase online, or enquire now for more information on Honda Engines.
OHC petrol engine Net Power: 1.47 kW ( 2.0 HP ) / 7000 rpm Max Net Torque: 2.2 Nm ( 0.22 kgfm ) / 5000 rpm
4-stroke, overhead valve, single-cylinder, horizontal shaft Net Power:
1.6kW (2.1HP) at 7,000rpm Max Net Torque:
2.7 Nm at 4,500 pm
Net Power: 2.6kW (3.5HP) at 3,600rpm Max Net Torque: 7.3 Nm at 2,500rpm
4-stroke single cylinder
OHV petrol engine
vertical shaft Net Power:
4.2 kW ( 5.6 HP ) / 3600 rpm Max Net Torque:
12.7 Nm ( 1.30 kgfm ) / 2500 rpm
