reliable, fuel efficient performance

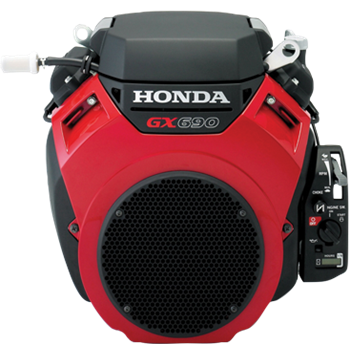

The GX690's high capacity pump facilitates consistent oil delivery, and a handy oil alert so there is no risk of running dry and doing damage to the engine. There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling, perfect when operating over long periods of time.
The result is a long-lasting, high-performing and reliable engine.
Honda's V-Twin range of engines are the cream of the crop, powering pressure washers, water pumps and commercial lawncare equipment.
Commonly used to power pressure washers, generators, construction, industrial, horticultural equipment and small vehicles.
FUEL EFFICIENT OPERATION
The fuel economy of the GX690 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.
It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving. A hemispherical combustion chamber delivers rapid combustion.
Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.
YOUR ENGINE IN DETAIL
|Type||Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft|
|Bore & Stroke||2 / 78 x 72mm|
|Net Power||16.5 kW (22.1 HP) / 3600rpm|
|Continuous Rated Power||11.5 kW (15.4 HP) / 3000 rpm 13.0 kW (17.4 HP) / 3600rpm|
|Max Net Torque||48.3 Nm / 4.93 kgfm / 2500rpm|
|Ignition System||Digital CDI with variable ignition timing|
|Starting System||Electric starter|
|Fuel Consumption at Rated Power||6.7 L/hr - 3600rpm|
Without oil filter replacement: 1.5L
With oil filter replacement: 1.7L
|Dimensions||429 x 410 x 438 mm (T-Type)|
the honda advantage
3 year warranty
Honda's leading range of power equipment comes with leading warranty periods. Our range of GX engines carrying up to a 3 year warranty*.
With regular servicing by a Honda authorised dealer, using only Honda Genuine Parts and Accessories, your Honda product will work hard around your home for many years.
Find more details on Honda's warranties and the warranty schedule on our warranty page.
Ready to take the next step towards your Honda engine? With our nationwide network of dealers, from the far north to the deep south and everywhere in between. You can purchase online, or enquire now for more information on Honda Engines.
